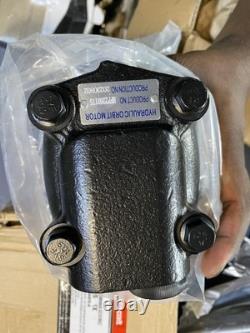

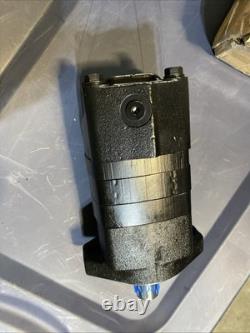

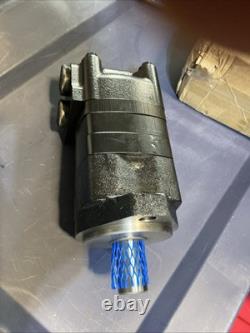

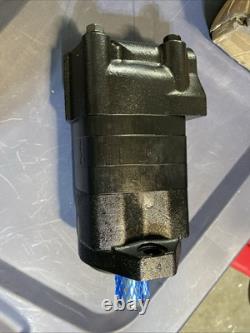

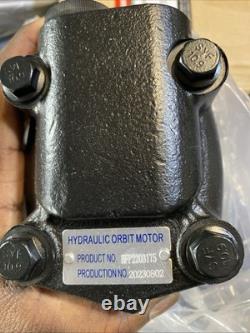

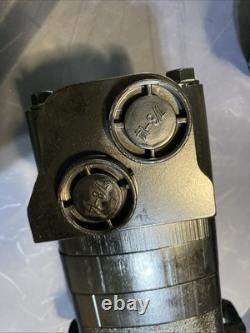

Danfoss Eaton Char-Lynn 2000 Series 104-1529-006 Hydraulic Gerotor Motor
Holes On 106.4 [4.19] Dia. Bolt Circle (SAE A) Actual Output Shaft: Straight Actual Port Type. 875-14 UNF-2B SAE O-Ring Ports - Staggered Ports Continuous Flow Rate: 75 L/min Continuous Torque: 4779 in Maximum RPM: 385 rpm Displacement: 101.6 cc/rev Intermittent Pressure: 310 bar Max Continuous Oil Viscosity: 70 Saybold universal second Maximum Flow Rate: 20 gpm Maximum Operating Pressure: 3000 psi Max Rpm: 385 rpm Maximum RPM-Continuous: 477 rpm Max System Operating Temperature: -34°C to 82 °C Motor Port Size: 7/8-14 UNF-2B Motor Port Type: Straight Thread O-Ring SAE Mounting Type: Standard, 2 Bolt, 82.6 [3.25] Pilot Dia.
